1 Introduction of Process scheduling

Process scheduling is a fundamental concept in operating systems that deals with the efficient and orderly execution of multiple processes running concurrently on a computer system. In a multitasking operating system, such as Windows, macOS, or Linux, there are typically many processes competing for the CPU's (Central Processing Unit) attention. The process scheduler is responsible for determining which process should run next and allocating CPU time to each process in a fair and efficient manner.

The primary goals of process scheduling are:

Fairness: Ensure that each process gets a fair share of the CPU time, preventing any single process from monopolizing the CPU and starving others.
Efficiency: Maximize CPU utilization and throughput by keeping the CPU busy with productive tasks as much as possible.
Responsiveness: Prioritize interactive processes, like user interface applications, to respond quickly to user inputs and maintain a smooth user experience.
Throughput: Maximize the number of processes completed per unit of time, achieving better overall system performance.

1.1 Write algorithm of FCFS, SJS, RR

1.1.1 FCFS Algorithm

The algorithm for the FCFS Scheduling program in C is as follows:

At first, the process of execution algorithm starts
Then, we declare the size of an array
Then we get the number of processes that need to insert into the program
Getting the value
Then the first process starts with its initial position and the other processes are in a waiting queue.
The total number of burst times is calculated.
The value is displayed
At last, the process stops

1.1.2 SJF Algorithm

Sort all the processes according to the arrival time.
Then select that process that has minimum arrival time and minimum Burst time.
After completion of the process make a pool of processes that arrives afterward till the completion of the previous process and select that process among the pool which is having minimum Burst time.

1.1.3 RR Algorithm

All the processes are organized in the ready queue based on the arrival time. To execute the CPU processes, a queue based on FIFO is used.
Push the first process from ready queue for the task to be executed for the allotted time.
The process runs for the allocated time even if the process doesn't reach completion, still it is stopped by the process in queue until the arrival time for the next process is reached.
In a similar manner, another process is selected by the ready queue to execute its task.
The above steps are repeated until all processes are finishe

1.2 WAP to Demonstrate following programs.

1.2.1 Program to generate FCFS Algorithm

#include<stdio.h>

int main(){

int n,bt[30],wait_t[30],turn_ar_t[30],av_wt_t=0,avturn_ar_t=0,i,j;

printf("Please enter the total number of processes(maximum 30):");

scanf("%d",&n);

printf("\nEnter The Process Burst Timen");

for(i=0;i<n;i++) {

printf("P[%d]:",i+1);

scanf("%d",&bt[i]);

}

wait_t[0]=0;

for(i=1;i<n;i++){

wait_t[i]=0;

for(j=0;j<i;j++)

wait_t[i]+=bt[j];

}

printf("\nProcess\t\tBurst Time\tWaiting Time\tTurnaround Time");

for(i=0;i<n;i++){

turn_ar_t[i]=bt[i]+wait_t[i];

av_wt_t+=wait_t[i];

avturn_ar_t+=turn_ar_t[i];

printf("\nP[%d]\t\t%d\t\t\t%d\t\t\t\t%d",i+1,bt[i],wait_t[i],turn_ar_t[i]);

}

av_wt_t/=i;

avturn_ar_t/=i; // average calculation is done here

printf("\nAverage Waiting Time:%d",av_wt_t);

printf("\nAverage Turnaround Time:%d",avturn_ar_t);

return 0;

}

Output :

1.2.2 Program to generate SJF Algorithm

#include <stdio.h>

int main()

{

int A[100][4];

int i, j, n, total = 0, index, temp;

float avg_wt, avg_tat;

printf("Enter number of process: ");

scanf("%d", &n);

printf("Enter Burst Time:\n");

for (i = 0; i < n; i++) {

printf("P%d: ", i + 1);

scanf("%d", &A[i][1]);

A[i][0] = i + 1;

}

for (i = 0; i < n; i++) {

index = i;

for (j = i + 1; j < n; j++)

if (A[j][1] < A[index][1])

index = j;

temp = A[i][1];

A[i][1] = A[index][1];

A[index][1] = temp;

temp = A[i][0];

A[i][0] = A[index][0];

A[index][0] = temp;

}

A[0][2] = 0;

for (i = 1; i < n; i++) {

A[i][2] = 0;

for (j = 0; j < i; j++)

A[i][2] += A[j][1];

total += A[i][2];

}

avg_wt = (float)total / n;

total = 0;

printf("P BT WT TAT\n");

for (i = 0; i < n; i++) {

A[i][3] = A[i][1] + A[i][2];

total += A[i][3];

printf("P%d %d %d %d\n", A[i][0],

A[i][1], A[i][2], A[i][3]);

}

avg_tat = (float)total / n;

printf("Average Waiting Time= %f", avg_wt);

printf("\nAverage Turnaround Time= %f", avg_tat);

}

Output :

1.2.3 Program to generate RR algorithm

#include<stdio.h>

int main(){

int cnt,j,n,t,remain,flag=0,tq;

int wt=0,tat=0,at[10],bt[10],rt[10];

printf("Enter Total Process:\t ");

scanf("%d",&n);

remain=n;

for(cnt=0;cnt<n;cnt++){

printf("Enter Arrival Time and Burst Time for Process Process Number %d :",cnt+1);

scanf("%d",&at[cnt]);

scanf("%d",&bt[cnt]);

rt[cnt]=bt[cnt];

}

printf("Enter Time Quantum:\t");

scanf("%d",&tq);

printf("\n\nProcess\t|Turnaround Time|Waiting Time\n\n");

for(t=0,cnt=0;remain!=0;){

if(rt[cnt]<=tq && rt[cnt]>0){

t+=rt[cnt];

rt[cnt]=0;

flag=1;

}

else if(rt[cnt]>0){

rt[cnt]-=tq;

t+=tq;

}

if(rt[cnt]==0 && flag==1){

remain--;

printf("P[%d]\t|\t%d\t|\t%d\n",cnt+1,t-at[cnt],t-at[cnt]-bt[cnt]);

wt+=t-at[cnt]-bt[cnt];

tat+=t-at[cnt];

flag=0;

}

if(cnt==n-1)

cnt=0;

else if(at[cnt+1]<=t)

cnt++;

else

cnt=0;

}

printf("\nAverage Waiting Time= %f\n",wt*1.0/n);

printf("Avg Turnaround Time = %f",tat*1.0/n);

return 0;

}

Output:

2 Introduction of Process

A process refers to an independent, self-contained unit of execution within an operating system. It is a fundamental concept that enables the execution of tasks, programs, and applications on a computer. Processes are at the heart of multitasking and multiprocessing, allowing a computer to handle multiple operations simultaneously, making it efficient and responsive.

Key aspects of a process include:

Process ID (PID
Memory Space
Context Switching
States
Creation and Termination
Inter-Process Communication (IPC)

2.1 Inter-Process Communication

Processes may need to exchange data or synchronize their actions. IPC mechanisms enable communication and coordination between processes, allowing them to work together or share resources when needed.

2.2 Define term Deadlock, PCB, Thread and Process State

2.2.1 Deadlock

Deadlock is a specific state that can occur in a concurrent computing system, where two or more processes are unable to proceed further because each is waiting for the other(s) to release a resource or complete an action. Essentially, deadlock creates a standstill in the system, where no progress can be made, and the processes involved become stuck in a loop of waiting indefinitely.

Deadlock arises when four conditions, known as the "deadlock conditions," are simultaneously met:

Mutual Exclusion
Hold and Wait
No Preemption
Circular Wait

2.2.2 PCB

PCB stands for "Process Control Block." It is a data structure used by operating systems to manage and store information about each individual process running in the system. The PCB serves as the central repository of process-related information that the operating system needs to keep track of the various processes and manage their execution effectively.

The information stored in PCB typically includes:

Process ID (PID), Process State
Program Counter (PC).
CPU Registers, Memory Pointers
CPU Scheduling Information
Process Priority
Open Files
Accounting Information
Parent-Child Relationship
Inter-Process Communication (IPC) Data

2.2.3 Thread

A thread is the smallest unit of execution within a process. It is also known as a "lightweight process" because it shares resources with other threads within the same process, unlike separate processes that have their own memory space and resources.

Threads allow a program to perform multiple tasks concurrently, taking advantage of modern multi-core processors and achieving better performance and responsiveness.

2.2.4 Process State

Process state, also known as process status, refers to the current condition or stage in which a process exists during its execution within an operating system.

The common process states in most operating systems include:

· New, Ready, Running, Blocked (Waiting), Terminated (Exit) and stopped.

2.3 WAP a program to demonstrate

2.3.1 Program to show creation of new process

#include <sys/types.h>

#include <stdio.h>

#include <unistd.h>

#include <sys/wait.h>

int main(int argc, char *argv[]) {

/* fork a child process */

pid_t pid = fork();

if (pid < 0) { /* error occurred */

fprintf(stderr, "Fork Failed");

return 1;

}

else if (pid == 0) { /* child process */

printf("I'm the child \n"); /* you can execute some commands here */

}

else { /* parent process */

/* parent will wait for the child to complete */

wait(NULL);

/* When the child is ended, then the parent will continue to execute its code */

printf("Child Complete \n");

}

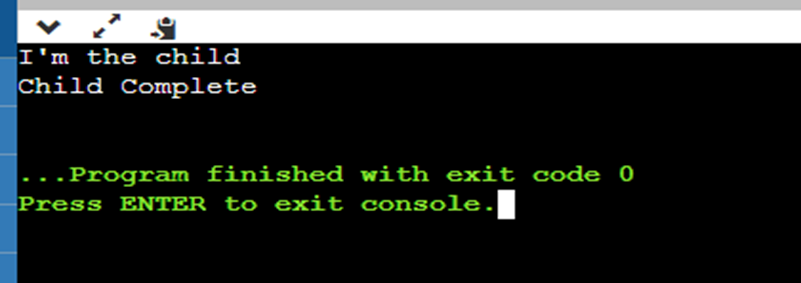

Output :

3 Introduction to Memory Management

Memory management is a critical aspect of computer systems and operating systems that deals with the organization and utilization of a computer's memory resources. In modern computing environments, memory management plays a central role in ensuring efficient and secure allocation, tracking, and optimization of memory usage by various processes and applications.

The primary goals of memory management are as follows:

1.      Allocation
2.      Deallocation/Freeing
3.      Protection
4.      Sharing
5.      Optimization

3.1 Write algorithm of page replacement using different technique.

3.1.1 FIFO Algorithm

Begin turning the pages.
Declare the size now relative to Page's length.
Check the page to memory for replacement needs.
Check whether switching from the old page to the new page in memory is necessary in a similar manner.
Create a queue to hold all of the pages now.
Add require page memory to the waiting list.
Check for page defects and bad replacements.
Request that no processes be introduced.
Declare the values.
Stop

3.1.2 LRU Algorithm

1.      Start the process
2.      Declare the size
3.      Get the number of pages to be inserted
4.      Get the value
5.      Declare counter and stack
6.      Select the least recently used page by counter value
7.      Stack them according the selection
8.      Display the value
9.      Stop the process

3.1.3 OPR Page Replacement Algorithm

1.      Start program
2.      Read Number of page and frames
3.      Read each page value
4.      Search for page in the frames
5.      If not available allocate free frames
6.      If no frames is free replace the page with the page that is lastly used
7.      Print page number of page faults
8.      Stop process

3.1.4 Worst Fit Algorithm

1. Input memory block with a size.

2. Input process with size.

3. Initialize by selecting each process to find the maximum block size that can be assigned to the current process.

4. If the condition does not fulfill, they leave the process.

5. If the condition is not fulfilled, then leave the process and check for the next process.

6. Stop.

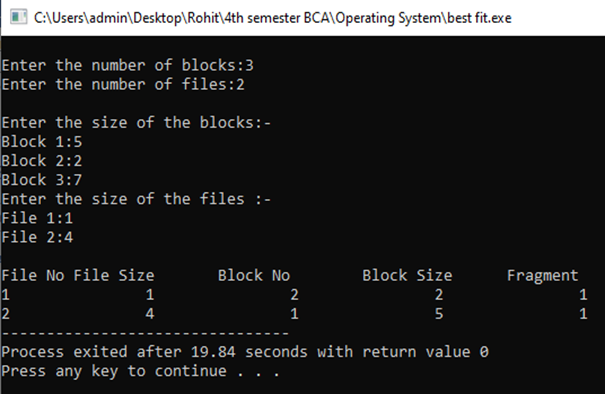

3.1.5 Best Fit Algorithm

1.      Input memory blocks and processes with sizes.
2.      Initialize all memory blocks as free.
3.      Start by picking each process and find the minimum block size that can be assigned to current process i.e., find min(bockSize[1], blockSize[2],.....blockSize[n]) > processSize[current], if found then assign it to the current process.
4.      If not then leave that process and keep checking the further processes.

3.1.6 First Fit Algorithm

1.      Start with all available memory as one big block.
2.      When a new process needs memory, look for the first available block that is large enough to hold it.
3.      If you find a block that fits the process exactly, allocate it to the process.
4.      If the block is larger than the process, split it into two parts: one for the process and the other for remaining free memory.
5.      Repeat the process for each new request.
6.      When a process finishes, mark its memory block as free.
7.      Merge contiguous free memory blocks to prevent fragmentation.
8.      If there's no suitable block for a new process, either wait or terminate the process, depending on the system's policy.

3.2 Define different Term

3.2.1 Page

In operating systems, a page is a fixed-sized block of memory used for data storage and management. It's like a small, equal-sized section of a notebook where information can be written or read. Pages are used in memory management to efficiently store and retrieve data from RAM, making the computer system work more smoothly.

3.2.2 Fragment

In operating systems, a fragment refers to small, unused gaps or leftover spaces in memory. It's like having some empty spaces between different pieces of information in a notebook, making it harder to find a continuous blank area to write new data. Fragments can occur in both RAM and disk storage, and they can lead to inefficiency in memory usage and slower performance.

3.2.3 Page Table

In operating systems, a page table is like a map that helps the computer find where each part of a process is stored in memory. It keeps track of which pages of a program are in RAM and their corresponding locations. When the CPU needs to access specific data, it uses the page table to quickly locate the correct memory address. This way, page tables make the process of accessing and managing memory more efficient.

3.2.4 Segment

In operating systems, a segment is like a distinct, self-contained section of a program or data. It's similar to having separate compartments in a drawer, where each compartment holds a specific part of the program or information. Segmentation allows programs to be divided into logical units, making them easier to manage and share resources efficiently. Each segment can have its own size and attributes, such as read or write permissions, which helps in better memory management and protection.

3.2.5 Thrashing

In operating systems, thrashing refers to a situation where the system spends more time swapping data between RAM and disk than actually executing useful tasks. It's like a computer being stuck in a never-ending loop of moving information back and forth between two locations without making any real progress in its work. Thrashing occurs when the system is overloaded with too many processes competing for limited memory resources. As a result, the performance of the system becomes extremely slow and inefficient.

3.2.6 Physical Address

In operating systems, a physical address is like the actual location or address of data in the computer's physical memory. It's similar to a house address that tells you the exact location of a building. When the CPU wants to read or write data, it uses the physical address to access the specific location in RAM where that data is stored. Physical addresses are essential for proper memory management and data retrieval in the computer system.

3.2.7 Logical Address

In operating systems, a logical address is like a virtual location or address used by a program to access data. It's similar to a postal code that helps identify a general area, but it doesn't correspond directly to a physical location. When a program needs to access data, it uses logical addresses, and the operating system translates these logical addresses into actual physical addresses in RAM using techniques like page tables. Logical addresses provide a layer of abstraction, making it easier to manage memory and protect processes from interfering with each other.

3.3 Write a program.

3.3.1 FIFO Page Replacement Algorithm

#include <stdio.h>

int main()

{

int referenceString[10], pageFaults = 0, m, n, s, pages, frames;

printf("\nEnter the number of Pages:\t");

scanf("%d", &pages);

printf("\nEnter reference string values:\n");

for( m = 0; m < pages; m++){

printf("Value No. [%d]:\t", m + 1);

scanf("%d", &referenceString[m]);

}

printf("\n What are the total number of frames:\t");

{

scanf("%d", &frames);

}

int temp[frames];

for(m = 0; m < frames; m++){

temp[m] = -1;

}

for(m = 0; m < pages; m++){

s = 0;

for(n = 0; n < frames; n++){

if(referenceString[m] == temp[n]){

s++;

pageFaults--;

}

pageFaults++;

if((pageFaults <= frames) && (s == 0)){

temp[m] = referenceString[m];

}

else if(s == 0){

temp[(pageFaults - 1) % frames] = referenceString[m];

}

printf("\n");

for(n = 0; n < frames; n++){

printf("%d\t", temp[n]);

}

printf("\nTotal Page Faults:\t%d\n", pageFaults);

return 0;

}

Output:

3.3.2 LRU Page Replacement Algorithm

#include<stdio.h>

main()

{

int q[20],p[50],c=0,c1,d,f,i,j,k=0,n,r,t,b[20],c2[20];

printf("Enter no of pages:");

scanf("%d",&n);

printf("Enter the reference string:");

for(i=0;i<n;i++)

scanf("%d",&p[i]);

printf("Enter no of frames:");

scanf("%d",&f);

q[k]=p[k];

printf("\n\t%d\n",q[k]);

c++;

k++;

for(i=1;i<n;i++)

{

c1=0;

for(j=0;j<f;j++)

{

if(p[i]!=q[j])

c1++;

}

if(c1==f)

{

c++;

if(k<f)

{

q[k]=p[i];

k++;

for(j=0;j<k;j++)

printf("\t%d",q[j]);

printf("\n");

}

else

{

for(r=0;r<f;r++)

{

c2[r]=0;

for(j=i-1;j<n;j--)

{

if(q[r]!=p[j])

c2[r]++;

else

break;

}

for(r=0;r<f;r++)

b[r]=c2[r];

for(r=0;r<f;r++)

{

for(j=r;j<f;j++)

{

if(b[r]<b[j])

{

t=b[r];

b[r]=b[j];

b[j]=t;

}

for(r=0;r<f;r++)

{

if(c2[r]==b[0])

q[r]=p[i];

printf("\t%d",q[r]);

}

printf("\n");

}

printf("\nThe no of page faults is %d",c);

}

Output:

3.3.3 OPR Page Replacement Algorithm

#include<stdio.h>

int main()

{

int n,pg[30],fr[10];

int count[10],i,j,k,fault,f,flag,temp,current,c,dist,max,m,cnt,p,x;

fault=0;

dist=0;

k=0;

printf("Enter the total no pages:\t");

scanf("%d",&n);

printf("Enter the sequence:");

for(i=0;i<n;i++)

scanf("%d",&pg[i]);

printf("\nEnter frame size:");

scanf("%d",&f);

for(i=0;i<f;i++)

{

count[i]=0;

fr[i]=-1;

}

for(i=0;i<n;i++)

{

flag=0;

temp=pg[i];

for(j=0;j<f;j++)

{

if(temp==fr[j])

{

flag=1;

break;

}

if((flag==0)&&(k<f))

{

fault++;

fr[k]=temp;

k++;

}

else if((flag==0)&&(k==f))

{

fault++;

for(cnt=0;cnt<f;cnt++)

{

current=fr[cnt];

for(c=i;c<n;c++){

if(current!=pg[c])

count[cnt]++;

else

break;

}

max=0;

for(m=0;m<f;m++){

if(count[m]>max){

max=count[m];

p=m;

}

fr[p]=temp;

}

printf("\npage %d frame\t",pg[i]);

for(x=0;x<f;x++){

printf("%d\t",fr[x]);

}

printf("\nTotal number of faults=%d",fault);

return 0;

}

Output:

3.3.4 Worst Fit Memory Management Algorithm

#include<stdio.h>

#define max 25

int main(){

int frag[max],b[max],f[max],i,j,nb,nf,temp;

static int bf[max],ff[max];

printf("\n\tMemory Management Scheme - First Fit");

printf("\nEnter the number of blocks:");

scanf("%d",&nb);

printf("Enter the number of files:");

scanf("%d",&nf);

printf("\nEnter the size of the blocks:-\n");

for(i=1;i<=nb;i++)

{

printf("Block %d:",i);

scanf("%d",&b[i]);

}

printf("Enter the size of the files :-\n");

for(i=1;i<=nf;i++)

{

printf("File %d:",i);

scanf("%d",&f[i]);

}

for(i=1;i<=nf;i++)

{

for(j=1;j<=nb;j++)

{

if(bf[j]!=1)

{

temp=b[j]-f[i];

if(temp>=0)

{

ff[i]=j;

break;

}

frag[i]=temp;

bf[ff[i]]=1;

}

printf("\nFile_no:\tFile_size :\tBlock_no:\tBlock_size:\tFragement");

for(i=1;i<=nf;i++)

printf("\n%d\t\t%d\t\t%d\t\t%d\t\t%d",i,f[i],ff[i],b[ff[i]],frag[i]);

return 0;

}

Output:

3.3.5 Best Fit Memory Management Algorithm

#include<stdio.h>

#define max 25

int main(){

int frag[max],b[max],f[max],i,j,nb,nf,temp,lowest=10000;

static int bf[max],ff[max];

printf("\nEnter the number of blocks:");

scanf("%d",&nb);

printf("Enter the number of files:");

scanf("%d",&nf);

printf("\nEnter the size of the blocks:-\n");

for(i=1;i<=nb;i++){

printf("Block %d:",i);

scanf("%d",&b[i]);

}

printf("Enter the size of the files :-\n");

for(i=1;i<=nf;i++){

printf("File %d:",i);

scanf("%d",&f[i]); Ouput:

}

for(i=1;i<=nf;i++){

for(j=1;j<=nb;j++){

if(bf[j]!=1){

temp=b[j]-f[i];

if(temp>=0)

if(lowest>temp){

ff[i]=j;

lowest=temp;

}

frag[i]=lowest;

bf[ff[i]]=1;

lowest=10000;

}

printf("\nFile No\tFile Size \tBlock No\tBlock Size\tFragment");

for(i=1;i<=nf && ff[i]!=0;i++)

printf("\n%d\t\t%d\t\t%d\t\t%d\t\t%d",i,f[i],ff[i],b[ff[i]],frag[i]);

return 0;

}

3.3.6 First Fit Memory Management Algorithm

#include<stdio.h>

#define max 25

int main(){

int frag[max],b[max],f[max],i,j,nb,nf,temp,highest=0;

static int bf[max],ff[max];

printf("\n\tMemory Management Scheme - first Fit");

printf("\nEnter the number of blocks:");

scanf("%d",&nb);

printf("Enter the number of files:");

scanf("%d",&nf);

printf("\nEnter the size of the blocks:-\n");

for(i=1;i<=nb;i++){

printf("Block %d:",i);

scanf("%d",&b[i]);

}

printf("Enter the size of the files :-\n");

for(i=1;i<=nf;i++){

printf("File %d:",i);

scanf("%d",&f[i]);

}

for(i=1;i<=nf;i++){

for(j=1;j<=nb;j++){ Output:

if(bf[j]!=1){

temp=b[j]-f[i];

if(temp>=0)

if(highest<temp)

{

ff[i]=j;

highest=temp;

}

frag[i]=highest;

bf[ff[i]]=1;

highest=0;

}

printf("\nFile_no:\tFile_size :\tBlock_no:\tBlock_size:\tFragement");

for(i=1;i<=nf;i++)

printf("\n%d\t\t%d\t\t%d\t\t%d\t\t%d",i,f[i],ff[i],b[ff[i]],frag[i]);

return 0;

}

4 Introduction to Disk Scheduling

Disk scheduling is a process in the operating system that determines the order in which read and write requests to the disk are serviced. When multiple processes or users request data from the disk, disk scheduling algorithms help decide which request should be handled first.

The main objective of disk scheduling is to reduce the seek time, which is the time taken by the disk arm to move to the desired track. By selecting an efficient request order, disk scheduling algorithms aim to minimize the time it takes to access data from the disk and improve overall system performance.

Different disk scheduling algorithms exist, such as FCFS (First-Come-First-Serve), SSTF (Shortest Seek Time First), SCAN, C-SCAN, LOOK, C-LOOK, and more.

Each algorithm has its own advantages and trade-offs, depending on the specific workload and access patterns of the system.

The choice of the disk scheduling algorithm can significantly impact the overall disk I/O performance and the response time of processes that rely on disk access.

In summary, disk scheduling is the process of arranging disk read and write requests to optimize disk access and improve the efficiency of the computer system.

4.1 Write algorithm of

4.1.1 FCFS

Algorithm of FCFS

Start with a queue that holds all the pending disk requests in the order they arrive.
The head of the disk starts at a particular position (track) on the disk.
Initialize the total seek time to zero, as there are no seeks initially.
While there are pending disk requests in the queue, do the following:

a. Dequeue the next request from the queue (the first request in the queue).

b. Calculate the absolute difference between the current head position and the requested track position (seek distance).

c. Add the seek distance to the total seek time.

d. Move the disk head to the requested track.

e. Service the request by reading or writing data.

Repeat step 4 until all requests in the queue are serviced.
After servicing all requests, calculate the average seek time by dividing the total seek time by the number of requests.

Top of Form

4.1.2 SCAN

Algorithm of SCAN

Start with a queue that holds all the pending disk requests.
The head of the disk starts at a particular position (track) on the disk.
Initialize the total seek time to zero, as there are no seeks initially.
Determine the direction of the disk movement. For example, if the head is at track 50 and the next request is at track 40, the direction is toward lower tracks (left). If the next request is at track 60, the direction is toward higher tracks (right).
While there are pending disk requests in the queue, do the following:

a. Service all requests in the current direction (either left or right) until no more requests are in that direction.

b. Calculate the absolute difference between the current head position and the requested track position (seek distance) for each serviced request.

c. Add the seek distances to the total seek time.

d. Move the disk head to the last serviced track in the current direction.

e. If there are still pending requests in the opposite direction, reverse the direction of disk movement.

Repeat step 5 until all requests in the queue are serviced.
After servicing all requests, calculate the average seek time by dividing the total seek time by the number of requests.

4.1.3 C-SCAN

Algorithm for C-SCAN

Start with a queue that holds all the pending disk requests.
The head of the disk starts at a particular position (track) on the disk.
Initialize the total seek time to zero, as there are no seeks initially.
Determine the direction of the disk movement. For example, if the head is at track 50 and the next request is at track 40, the direction is toward lower tracks (left). If the next request is at track 60, the direction is toward higher tracks (right).
While there are pending disk requests in the queue, do the following:

a. Service all requests in the current direction (either left or right) until no more requests are in that direction.

b. Calculate the absolute difference between the current head position and the requested track position (seek distance) for each serviced request.

c. Add the seek distances to the total seek time.

d. Move the disk head to the last serviced track in the current direction.

e. If there are still pending requests in the opposite direction, move the head immediately to the first track in that direction, without servicing any requests in between.

Repeat step 5 until all requests in the queue are serviced.
After servicing all requests, calculate the average seek time by dividing the total seek time by the number of requests.

4.2 Write a program to demonstrate.

4.2.1 FCFS disk scheduling algorithm

#include<stdio.h>

#include<stdlib.h>

int main()

{

int RQ[100],i,n,TotalHeadMoment=0,initial;

printf("Enter the number of Requests\n");

scanf("%d",&n);

printf("Enter the Requests sequence\n");

for(i=0;i<n;i++)

scanf("%d",&RQ[i]);

printf("Enter initial head position\n");

scanf("%d",&initial);

// logic for FCFS disk scheduling

for(i=0;i<n;i++)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

printf("Total head moment is %d",TotalHeadMoment);

return 0;

}

Output:

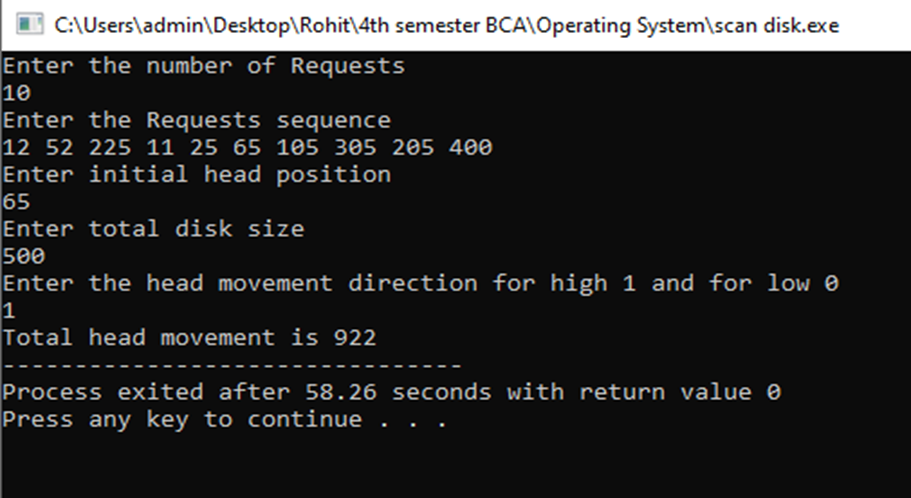

4.2.2 SCAN disk scheduling algorithm

#include<stdio.h>

#include<stdlib.h>

int main()

{

int RQ[100],i,j,n,TotalHeadMoment=0,initial,size,move;

printf("Enter the number of Requests\n");

scanf("%d",&n);

printf("Enter the Requests sequence\n");

for(i=0;i<n;i++)

scanf("%d",&RQ[i]);

printf("Enter initial head position\n");

scanf("%d",&initial);

printf("Enter total disk size\n");

scanf("%d",&size);

printf("Enter the head movement direction for high 1 and for low 0\n");

scanf("%d",&move);

// logic for Scan disk scheduling

/*logic for sort the request array */

for(i=0;i<n;i++)

{

for(j=0;j<n-i-1;j++)

{

if(RQ[j]>RQ[j+1])

{

int temp;

temp=RQ[j];

RQ[j]=RQ[j+1];

RQ[j+1]=temp;

}

int index;

for(i=0;i<n;i++)

{

if(initial<RQ[i])

{

index=i;

break;

}

// if movement is towards high value

if(move==1)

{

for(i=index;i<n;i++)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

// last movement for max size

TotalHeadMoment=TotalHeadMoment+abs(size-RQ[i-1]-1);

initial = size-1;

for(i=index-1;i>=0;i--)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

// if movement is towards low value

else

{

for(i=index-1;i>=0;i--)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

// last movement for min size

TotalHeadMoment=TotalHeadMoment+abs(RQ[i+1]-0);

initial =0;

for(i=index;i<n;i++)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

printf("Total head movement is %d",TotalHeadMoment);

return 0;

}

Output:

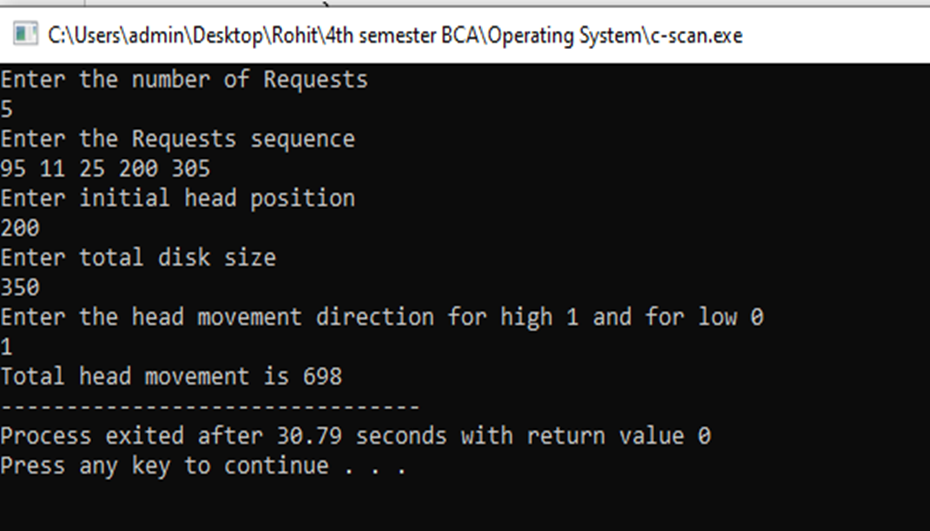

4.2.3 C-SCAN disk scheduling algorithm

#include<stdio.h>

#include<stdlib.h>

int main()

{

int RQ[100],i,j,n,TotalHeadMoment=0,initial,size,move;

printf("Enter the number of Requests\n");

scanf("%d",&n);

printf("Enter the Requests sequence\n");

for(i=0;i<n;i++)

scanf("%d",&RQ[i]);

printf("Enter initial head position\n");

scanf("%d",&initial);

printf("Enter total disk size\n");

scanf("%d",&size);

printf("Enter the head movement direction for high 1 and for low 0\n");

scanf("%d",&move);

// logic for C-Scan disk scheduling

/*logic for sort the request array */

for(i=0;i<n;i++)

{

for( j=0;j<n-i-1;j++)

{

if(RQ[j]>RQ[j+1])

{

int temp;

temp=RQ[j];

RQ[j]=RQ[j+1];

RQ[j+1]=temp;

}

int index;

for(i=0;i<n;i++)

{

if(initial<RQ[i])

{

index=i;

break;

}

// if movement is towards high value

if(move==1)

{

for(i=index;i<n;i++)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

// last movement for max size

TotalHeadMoment=TotalHeadMoment+abs(size-RQ[i-1]-1);

/*movement max to min disk */

TotalHeadMoment=TotalHeadMoment+abs(size-1-0);

initial=0;

for( i=0;i<index;i++)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

// if movement is towards low value

else

{

for(i=index-1;i>=0;i--)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

// last movement for min size

TotalHeadMoment=TotalHeadMoment+abs(RQ[i+1]-0);

/*movement min to max disk */

TotalHeadMoment=TotalHeadMoment+abs(size-1-0);

initial =size-1;

for(i=n-1;i>=index;i--)

{

TotalHeadMoment=TotalHeadMoment+abs(RQ[i]-initial);

initial=RQ[i];

}

printf("Total head movement is %d",TotalHeadMoment);

return 0;

}

Output:

<write the conclusion at last>

Don't forget to share your comment with us, also follows us to get more interesting article on different subject.

Lab Report of Operating System BCA 4th semester

<write the conclusion at last>

Comments

Post a Comment

Popular Posts

Other Post

Contact Us

Followers
